Parts

Off-The-Shelf

Part Quantity
nice!nano 1
Rama Works GRID Set A Keycaps, Kuro 46
Rama Works GRID Set B Keycaps, Noct 18
M3 Spacer, 5mm 7
6mm tactile push button 1
Kailh MX Hotswap Sockets 64
3.7V 90mAh Lithium Polymer Battery 1
M3 Knurled Insert Nuts, 0.5mm 5
1N4148 Throughhole Diode 64
12mm Latching Push Button Switch 1
M3 Low-Profile Screws, ?mm 7
M3 Nut 2
90 Degree USB-C Adapter 1
M2.5 Screws 4
Broaching Nuts 4
M2.5 Spacers, 3mm 4
Female Dupont Connector 4
Cherry MX Red Switches 64
90 Degree Headers, 2 wide 2

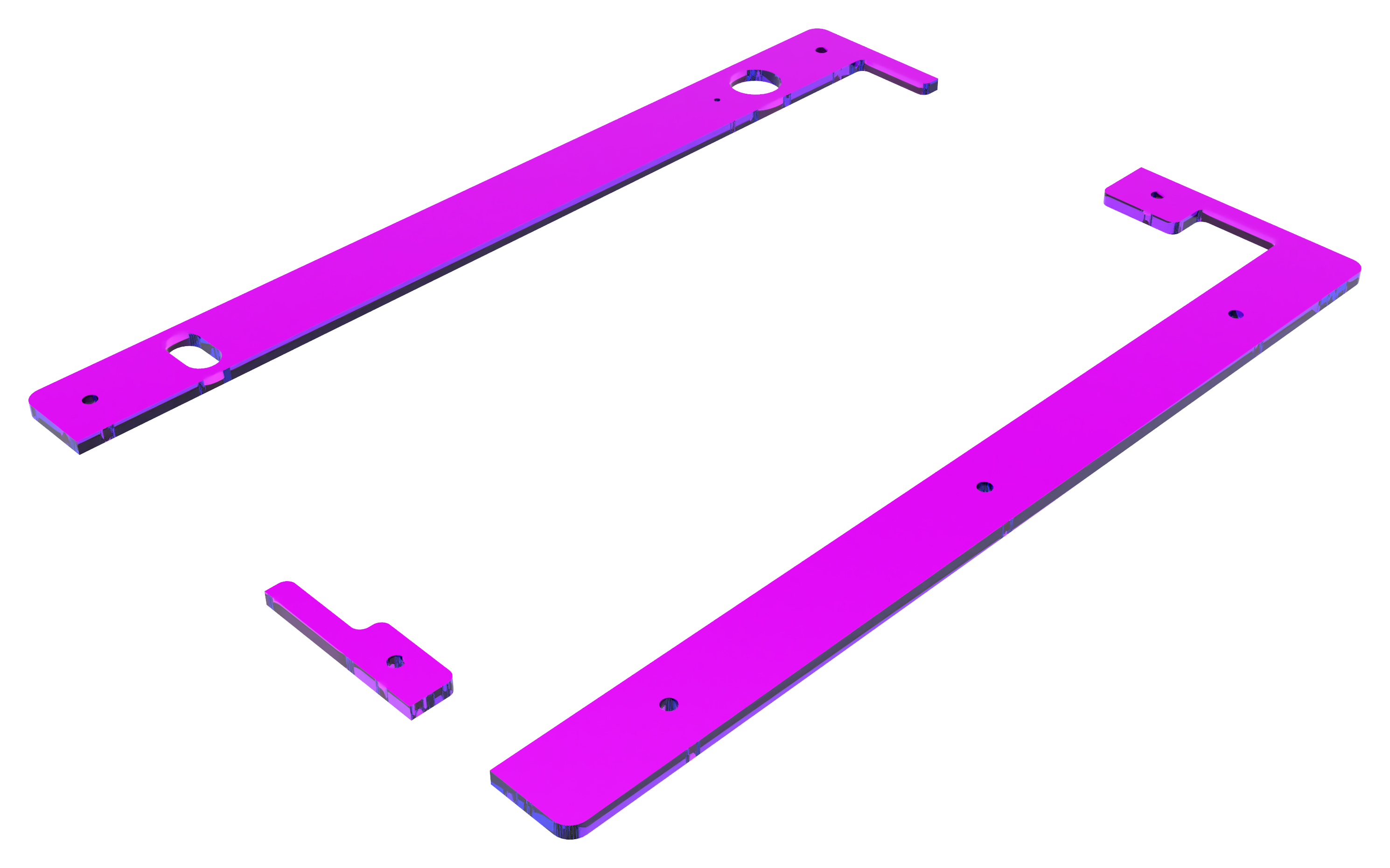

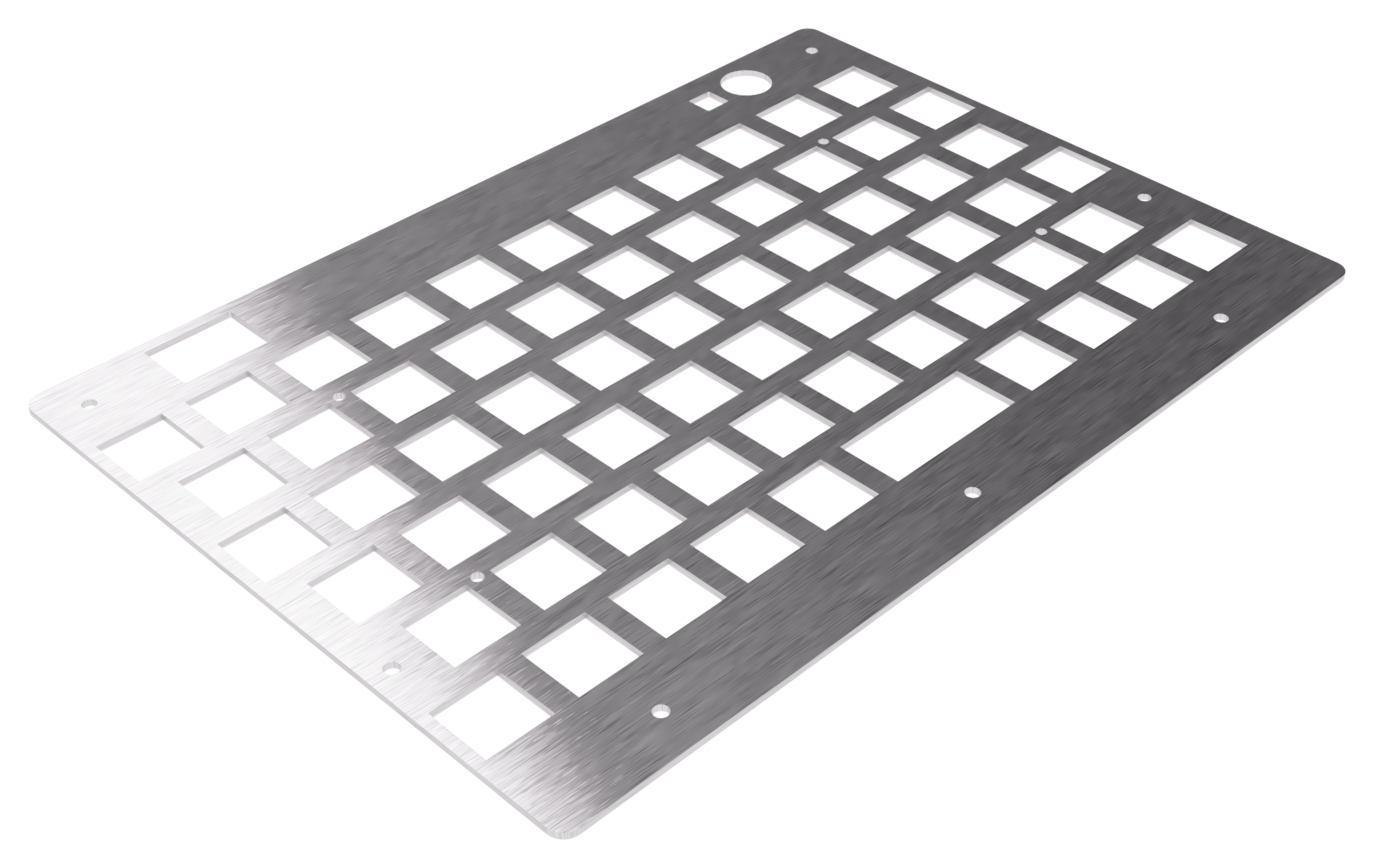

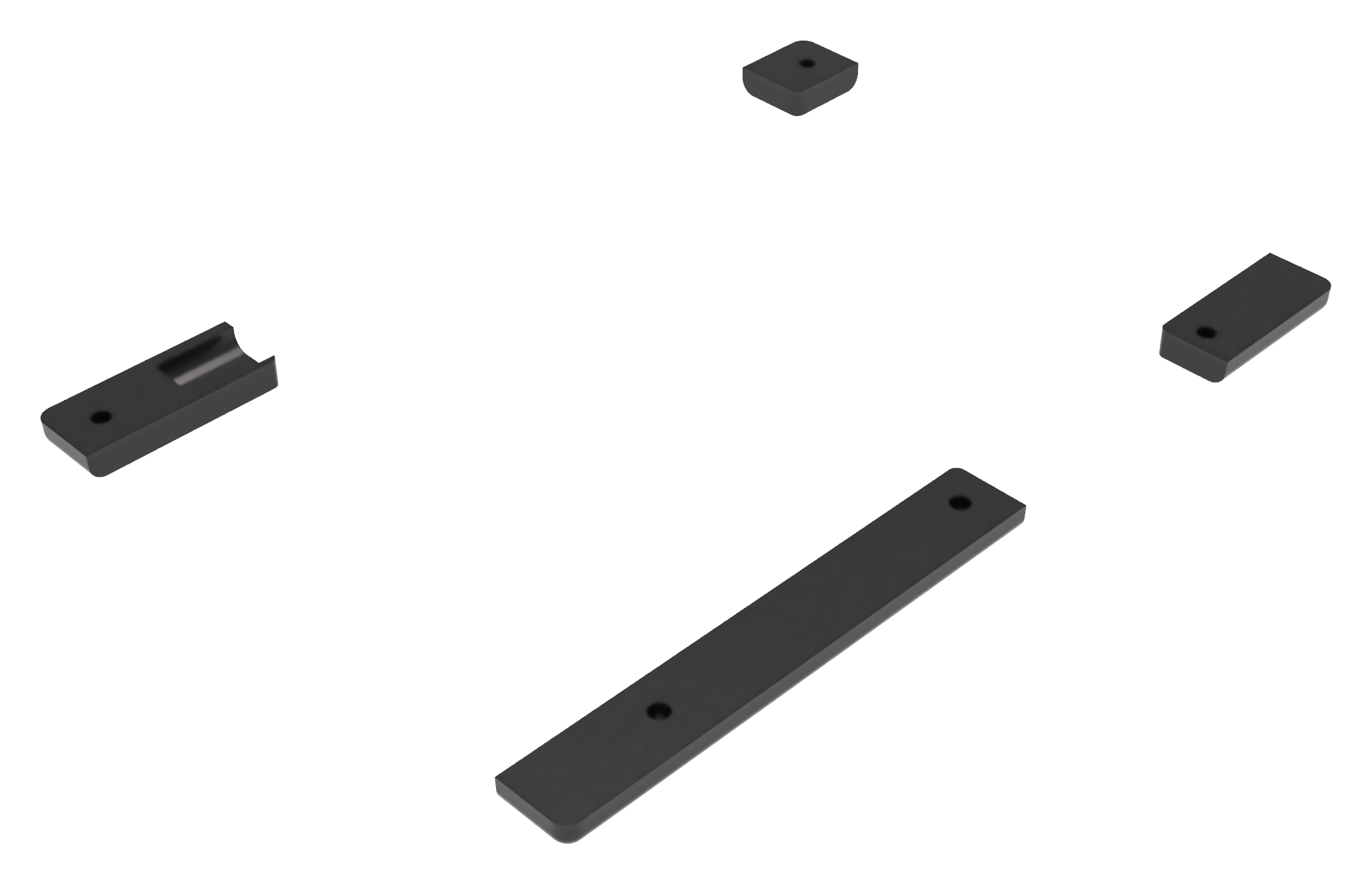

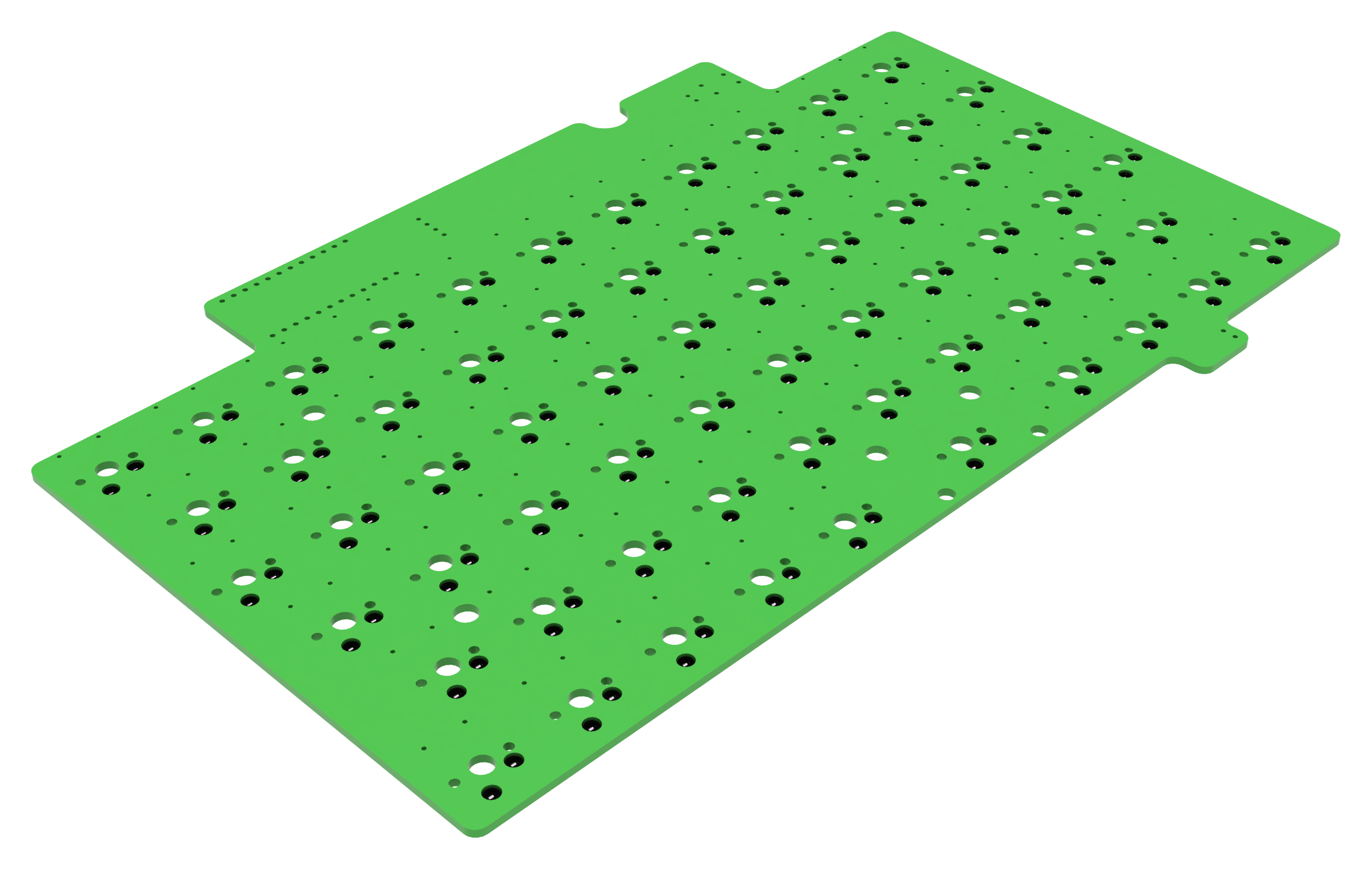

Custom
