Keyboard
Layout
Design

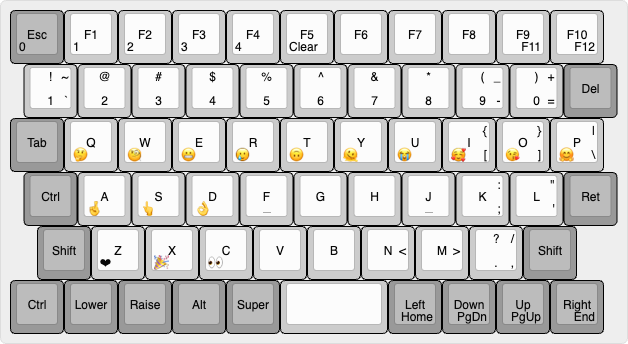

The Little Keyboard is a custom 64-key keyboard that I created with the very specific goal of deviating as little as possible from a standard keyboard layout—it essentially doubles up the keys on the right-hand side of the keyboard by using the ‘raise’ modifier. Emoji keys are mapped using the ‘lower’ modifier, entered as unicode character codes using macros.
Tip
This design was created using Keyboard Layout Editor and the JSON can be found in the keyboard directory.
Useful References
Video Guides
- Making a Keyboard Macropad PCB (Kicad 6.0), Noah Kiser
- Single Button Nice!Nano Keyboard, Ben Vallack
- Make your own analog keyboard PCB (in Kicad) - Part 1 (Schematic), riskable
